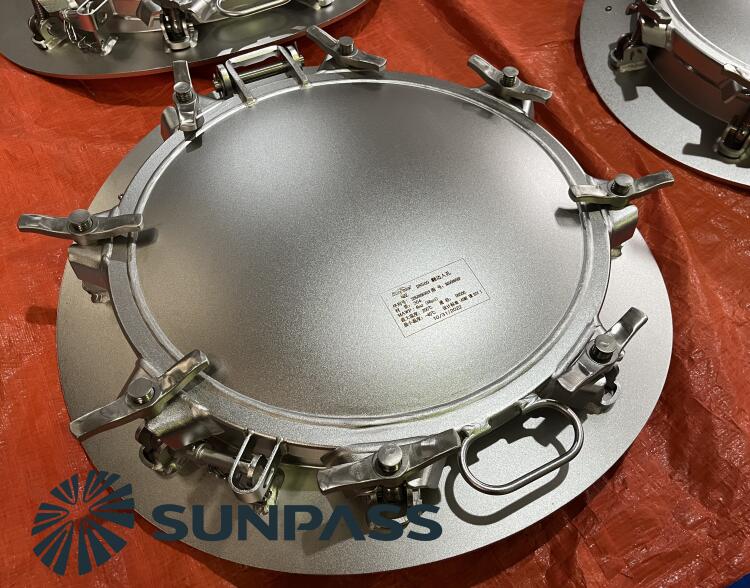

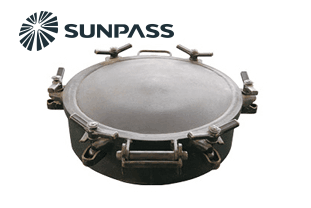

1. DN300 DN500 Low Profile Manlid Inspection Hatch Assembly
Nominal Diameter
DN300 DN500
Design Pressure
4bar
Test Pressure
6bar
Design Temperature
-40-250℃
Valve Body Material
Q345R, 304, 316
Weight
42KG
Adapt To Tank
R850~1260MM
Installation
Welding with tank body
Outlet
Locking with 8 swing bolt
2. DN300 DN500 Straight Neck Manlid Inspection Hatch Assembly
Nominal Diameter
DN300 DN500
Design Pressure
4bar
Test Pressure
6bar
Design Temperature
-40-250℃
Valve Body Material
304/316
Weight
56KG
Inlet
Welding
Outlet
Swingbolt
For more details, please visit www.sunpass.cn
Welcome to mail: sales@sunpass.cn or call at +86-574-62837603
SUNPASS，SINCE 2000, leading manufactory, developer, and supplier of quality ISO tank container spare parts and valve accessories, including manlid PTFE Braided seal, super tank seal, manlid clamp, PTFE flange gasket, CNAF/PTFE gaskets, O ring, dust cap, flange, flame gauze, one way ball, thermometer, pressure gauges, documents holder, data plate, walk way, valve and so on. Supplier of CIMC, Singamas. ITCO member. Isotank Cleaning，Isotank Depot， Isotank Repair, Maintain, Isotank service，Isotank terminal，isotank manlid
