Airline Valve：
|
Design Pressure |
10bar |
|
Test Pressure |
15bar |
|
Design Temperature |
-40-205℃ |
|
Valve Body Material |
304/316 |
|
Weight |
1.68KG |
|
Inlet |
frange connection |
|
Outlet |
1.5“ bsp connection |
Rupture Burst Disc：
|
Code |
Size |
Burst Pressure |
Material |
Temperature Rate |
|
|||
|
In |
Mm |
Barg |
Pslg |
°F |
°C |
|
||
|
BD025484 |
2.5 |
65 |
4.84 |
70.2 |
Nickel |
20 |
68 |
|
|
BD030484 |
3 |
80 |
4.84 |
70.2 |
Nickel |
20 |
68 |
|

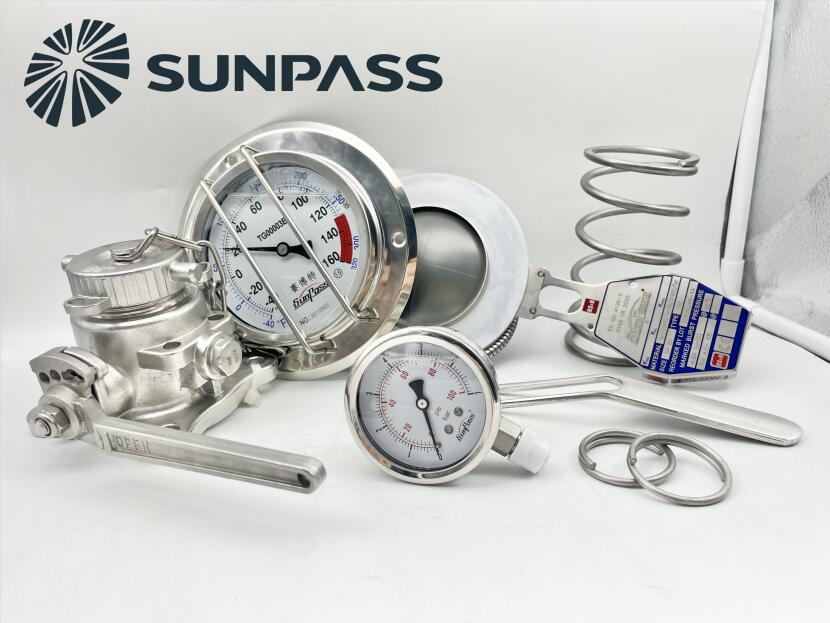

Pressure Gauge：
|
|
0~3,000psi |
|
Case Nominal Diameter |
1-1/2" ; 2", 2- 1/2"; 3"; 4"; 6" |
|
Case Material |
Stainless Steel |
|
Windows |
Polycarbonate |
|
Movement |
Brass, Stainless Steel |
|
Connection |
Bottom Connection or Center Back Male Connection |
|
Inlet Thread |
1/2"; 1/4"; 1/8"; 3/8" BSP, BSPT, NPT or According to customers requirements. |
|
Filled Oil |
Glycerine, Silicone Oil |
|
Scales |
psi, bar, mpa, kg/cm3, Hg single or dual scale or According to customers requirements. |
Thermometer：
|
Indication Range |
-50C up to +550C(-63F to +1022F) |
|
Case Nominal Diameter |
3"; 4"; 5"; 6" |
|
Case Material |
Stainless Steel |
|
Temperature Probe Size |
Φ 14mm x150mm, Φ14mm x 200mm. |
|
Immersion Tube Length |
=<24M |
|
Max Pressure |
Brass material of probe 1.6Mpa;Stainless material of probe 6.3Mpa. |
|
Theaded Connection |
1/2"; 1/4"; 1/8"; 3/8"; BSP, BSPT NPT or according to customers requirements. |
|
Accuracy |
1.6-1% |
