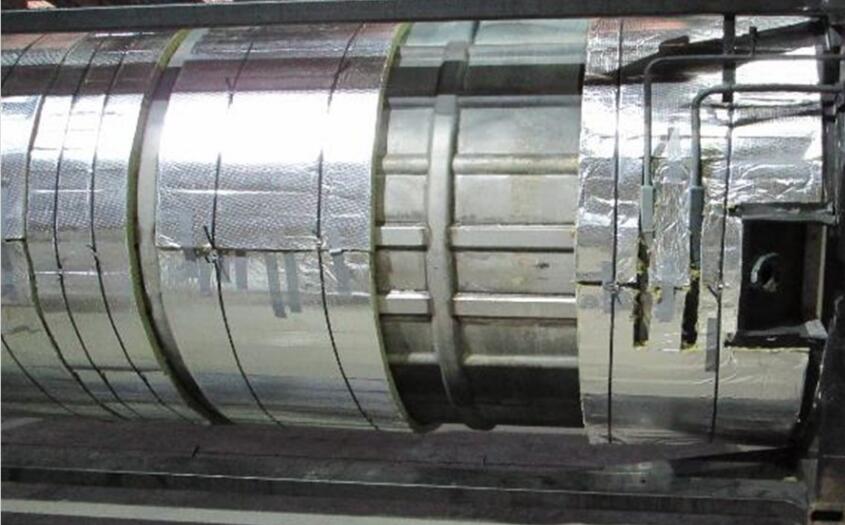

SUNPASS aluminum foil mineral wool rock wool blanket for ISO Tank Container insulation service. Mineral Wool mattress is made of fine fibers spun from selected rocks melted at high temperature and bonded with a thermosetting resin. The uniform distribution, the fine diameter and flexibility of fiber are the unique characteristics of Mineral Wool Lightly Resin Bonded mattress. The properties are controlled to form mattress of predetermined density and thickness. The flexibility of mattress enables it to be application curved surfaces & hence are ideal for industrial boiler insulation, hot air duct insulation, tank insulation. It can be faced on one side or both sides to form a firm and flexible multipurpose insulating media. The facings may be Aluminium Foil or Galvanized wire mesh or Stainless Steel wire mesh of different specifications. The mattress provides excellent stability, due to uniform thickness and density, resulting in prevention of heat losses. |
| Technical Datas: | |||
| Technical Property | Unit | Technical Index | |
| Thermal Conductivity | W/(m·k) | 0.030-0.040 | |
| Max Service Temp | °C | ≤650 | |
| Dregs Content (particle ≥ 0.25mm) | % | ≤12.0 | |
| Incombustibility | - |
Non-flammable A Flame spread index = 0 ; Smoke development index = 0 |
|
| Average Fiber Diameter | μm | 4~7 | |
| Density Tolerance | % | ±10 | |
| Thermal Load Contract | °C | 400-600 | |
| Acid Coefficient | - | ≥1.8 | |
| Water Absorption | Kg/m2 | ≤0.5 | |
| Water Repellence | % | ≥98 | |
| Melting Point | °C | ≥1000 | |
| Environment | - | Asbestos free | |
| Product Density | kg/m3 | 40 | |
