Specifications：
Super tanktyt manlid seal
Seal for tank container
Excellent chemical resisitance
Super Tanktyt Manlid Seal
Description：
This manlid seal combines the resilience and compression set resistance of EPDM rubber with the outstanding chemical resistance of PTFE. The seal's rectangular elastomeric core is enveloped on three sides: top and bottom sealing faces and the inside diameter) with 100% virgin PTFE.
Prime features
Excellent chemical resistance. Withstands repeated opening/closing cycles without loss of sealing integrity.
Chemical properties：
The PTFE envelope makes the sealing faces and inside diameter chemically inert to media in the range pH 0-14 including all bulk liquid cargoes in all IMO classes. The virgin PTFE is non-absorbent, non-tainting, and hygienic for use with foodstuffs and edible oils.
Service capabilities：
Tank maximum pressure: 4bar
Maximum temperature: +110 degC
Minimum temperature: -25 degC
Standard Size:
DN500 (14MM *12MM) SECTION*484MM INNER DIA.
DN500 (14MM *14MM) SECTION*484MM INNER DIA.
DN300 (14MM *10MM) SECTION*294MM INNER DIA.

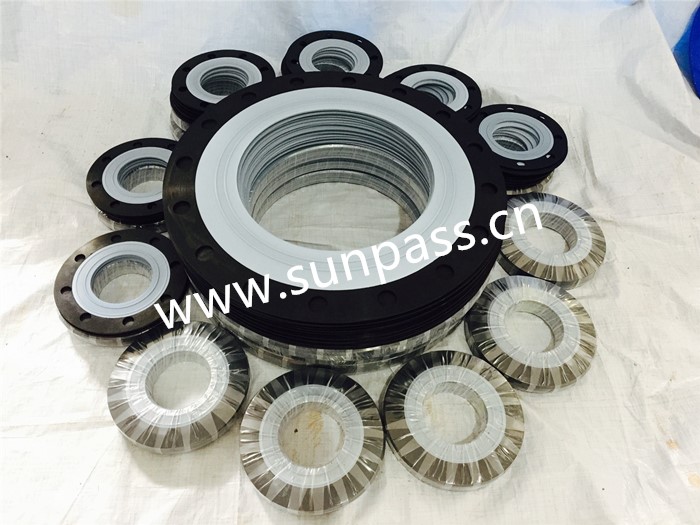

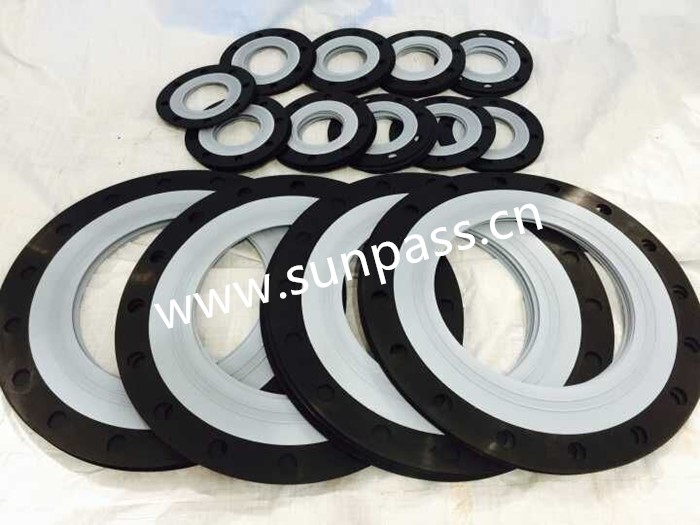

Pictures:
SUNPASS，SINCE 2000, leading manufactory, developer, and supplier of quality ISO tank container spare parts, including manlid PTFE Braided seal, super tank seal, manlid clamp, PTFE flange gasket, CNAF/PTFE gaskets, O ring, dust cap, glange, flame gauze, one way ball, thermometer, pressure gauges, documents holder, data plate, walk way, and so on.
