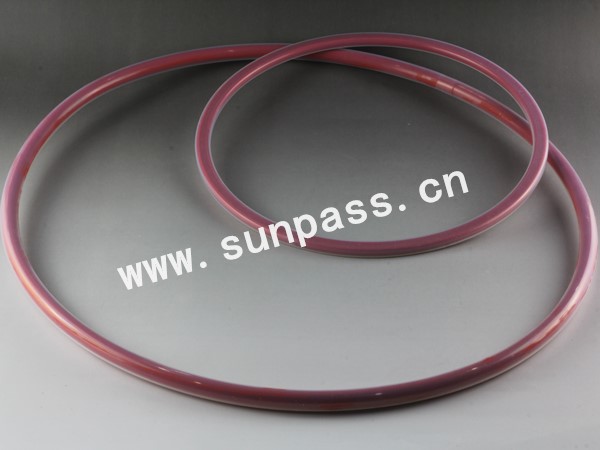

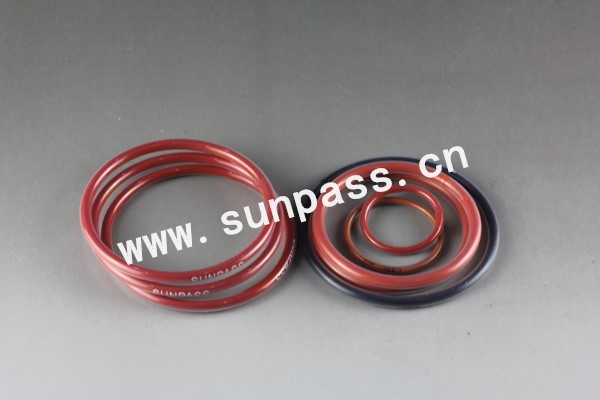

SUNPASS FEP-encapsulated "O" rings have a resilient core of silicone (VMQ) elastomer completely covered with a bleedline-free sheath of FEP fluoropolymer. They are fully interchangeable with standard elastomeric "O" rings and solid PTFE "O" rings.
Advantages
1.Excellent chemical resistance to a wide rang of fluid media
2.High level of hygiene for use with foodstuffs and edible oils
3.Far better elasticity and seal ability than solid PTFE rings
4.Operational temperature rang of -60C to + 150C
Application Data
Performance Unit Standard Data
Tensile Strength Mpa 11-16 14
Compression Strength Mpa ≥20 29
Rreaking Elongation % 200-400 380
Dilatation Coefficient 10-4C 1.0 1.0
Friction Coefficient <0.11 0.09
Density G/CM3 1.8-2.0 1.98
Wire Diameter: ±0.1MM ID: +0MM, -0.2MM
