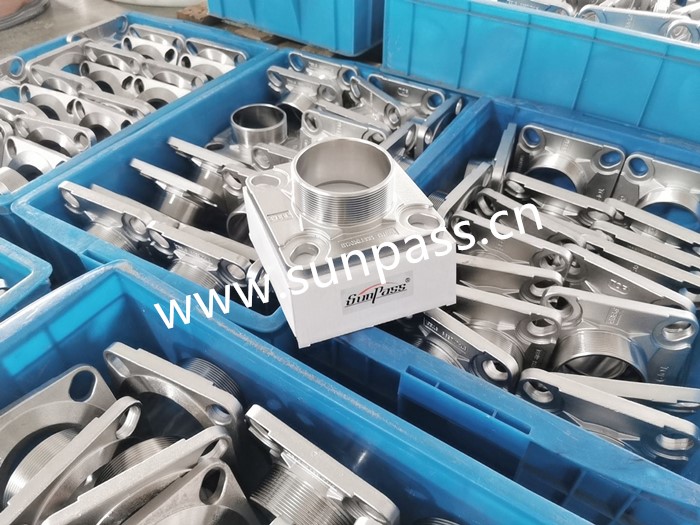

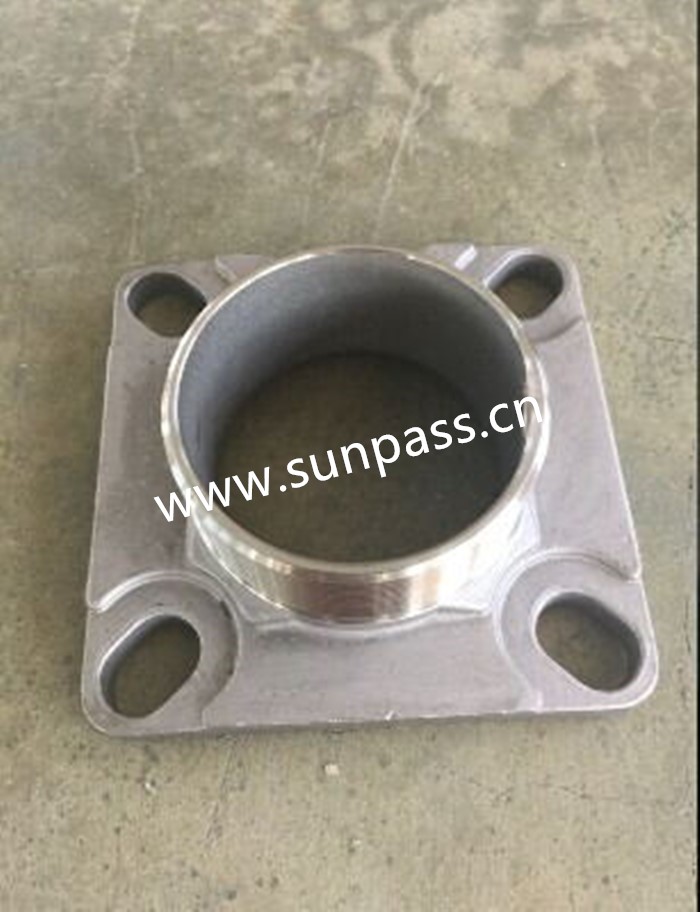

3“ Square Flange From SUNPASS

Square Flange has a square surface of metal that attaches very tightly with the other attachments. It is a special type of flange and is used to seal the connections water tight in high pressure systems. Dinesh Industries is a manufacturer and supplier of these flanges in large scales. The Square Flange Dimensions vary depending on the systems they are used. There could be small scale flanges or large scale flanges depending on the application. The size of the flanges is determined by the Square Flange Standard which covers a certain range of nominal diameters for the flanges.

The Square Flange for example covers the square flanges that range from ½ inches in outer diameter to 24 inches. The pipes and pipe lines of this size can use this particular standard of square flanges. It is not just the stainless steel that we make square flanges out of, but also in other material grades. Our Copper Square Flange is much useful in acidic environments where the corrosion risk is high.  In applications where the corrosion risk and strength requirement are low, the Mild Steel Square Flange could be applied. Sometimes galvanized Gi Square Flange is also used. Whatever your requirement is, we are ready to supply.

Square flanges are used for between pipe-to-pipe or pipe-to-components connections. The pressure ratings for square flanges are available in 210 kg/cm², 280 kg/cm², and 350 kg/cm².

Pictures:
